CaptureITPro is the perfect choice for your medical imaging and documentation needs.
CaptureITPro version 2.0 is CE certified, FDA registered, easy to use, functionally rich, medical imaging and reporting software. It connects to various medical devices like Endoscopy, Laparoscopy, Bronchoscopy, Gastroscopy, Colonoscopy, Cystoscopy, Arthroscopy, surgical microscopes etc.., and allows capturing of medical images in BMP/JPG/DICOM format and high quality videos in AVI/MPEG format.
SIMPLE ELEGANT DESIGN
Easy to Use
ALL INCLUSIVE ARCHITECTURE
Feature Rich
TRUSTED BY THOUSANDS
Value for Money
CaptureITPro Medical Imaging Software : The Only Imaging Software You Need

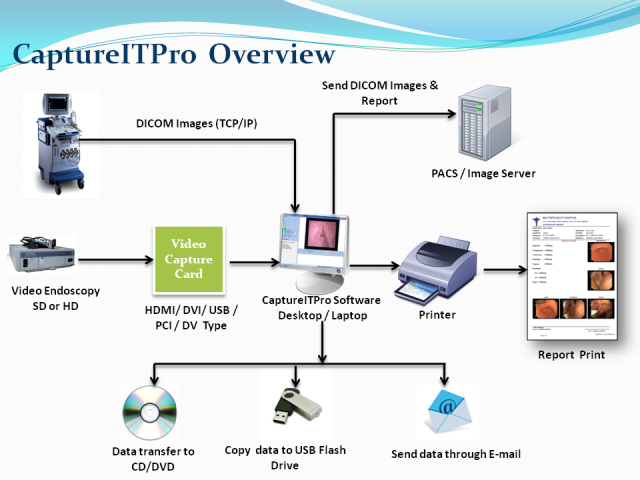

CaptureITPro software connects to SD/HD Endoscope camera (Svideo/RCA/BNC/DVI/HDMI/SDI) output and allows recording video/images in HD resolution (720p/1080p). High quality images/videos are very useful for presentation, training, and reporting purposes. Video output is captured via a SD/HD video capture card installed in the system running CaptureITPro software and is stored/retrieved/managed by the software. Efficient compression techniques are used to reduce video storage space.
CaptureITPro software allows Capturing images from both DICOM & Non-DICOM modalities and store in BMP/JPG/DICOM format. Record medical procedure videos with best possible compression and playback recorded video for image capture or EBM practice. Generate customizable reports with images for various medical procedures and store reports in DICOM/PDF/RTF format.
CaptureITPro is a world-class HD ready product from AmbalSoft and it is the answer to your search for simple fast, reliable and efficient HD video capture and image management software.

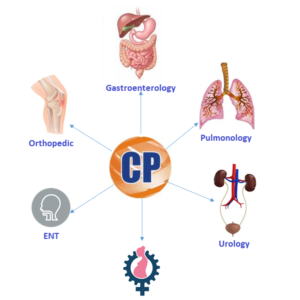

All Specialties Supported
CaptureITPro is CE certified, FDA registered, easy to use functionally rich, medical documentation software. It connects to various visual light medical devices like Endoscopy, Laparoscopy, Bronchoscopy, Gastroscopy, Colonoscopy, Cystoscopy, Arthroscopy, surgical microscopes etc., Allows limitless video recording and image capturing for medical procedures and surgical videos. Its vendor neutral software supports with all brand of video endoscopy devices.
High Definition Capture
CaptureITPro connects to HD Endoscopy & Laparoscopy systems (DVI/HDMI/HD-SDI output) and allows recording videos/images in HD resolution (720p/1080p) with 50/60fps. It uses excellent video compression technology (H.264) with best playback quality. HD images/videos can be edited for presentation, training and reporting purposes. Record audio signals along with video recording and store it as video clip.

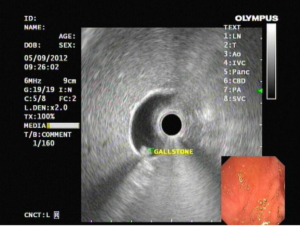

Picture-In-Picture Mode
CaptureITPro enables PIP mode to display two video source signals in a single screen. It gives simultaneous display of endoscopic and fluoroscopy images in EUS or EBUS or ERCP procedures. Also switch the images primary and secondary for comfortable viewing. Important portions can be marked on the video during procedure time itself. Connect multiple video inputs (Composite/S-Video), and switch between them in real time video recording.
DICOM Support
Connect DICOM modalities like Ultrasound, C-Arm, USG etc.., to receive DICOM images and store in DICOM/BMP/JPEG format. Reports combined with endoscopy images & DICOM images can be generated. Store endoscopy images, videos and reports to the PACS server. Modality like C-Arm or Fluoroscopy images can be received in CaptureITPro and save it in JEPG / BMP format for making combined reports along with endoscopy images. Saves need for expensive DICOM printer.

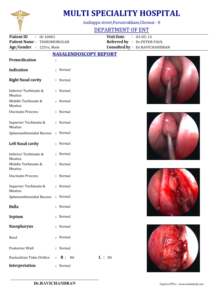

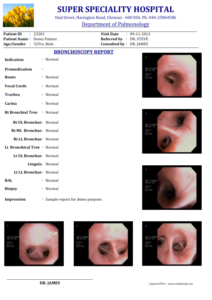

Customizable report templates
CaptureITPro software has predefined templates for various medical procedures, every report template has the finding libraries where the user chooses the findings instead of typing manually. Also users can customize their own templates in their regional languages. Microsoft word interface reporting facility will give more flexibility in the customization.
Profile based settings
Create multiple settings for different user preferences and save it in profile based settings. Automatically apply the profile settings based on procedure. Customized resolution settings, overlay patient demographic information, hospital logo etc.
HL7 Complaint
CaptureITPro software readily integrates with Hospital Management System (HMS). Follows international standards like HL7 or DICOM MWL. It has wide range of versions support in HL7 protocol. It provides bi-directional communication to get patient data from HMS / RIS and send captured data back to the server for centralized storage. It can handle ORM / ADT messages for various activity like New order, Order Cancel, Order update etc.

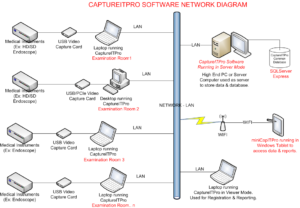

Client-Server Architecture
Connects multiple procedure client systems with the centralized database access. Scalability to increase the number of client systems, which can be used as standalone and synchronized with centralized server. Dedicated viewer license can setup the registration or reporting station where user can have only patient’s registration part or reporting work separately from the capturing client.
Image / Video Editing
In-built image editor with annotation tools will helps to mark important findings on the captured images. Similarly the built-in video editor will crop the important video portions from the recorded video clip for presentation purposes.

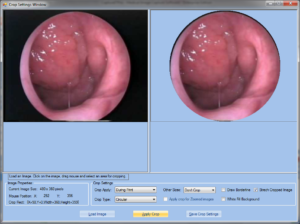

Intelligent Image Cropping
CaptureITPro software has image cropping facility to mask unwanted portions from the images. This feature enables to avoid from printing the black portions in the endoscopy images. User selects either Rectangular or Circular cropping tool to mask the unwanted area from the captured image. This saves printer ink cost and gives elegant view in the reporting print.

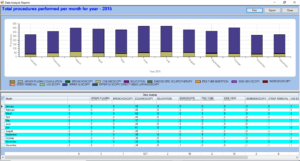

Statistical Data Analysis
CaptureITPro stores all the user input’s values in the database including the report findings and later it allows to generate statistical data analysis report based on various criteria like “Procedures done in specific period, Number of procedures done by doctors wise, Patients registered based on particular finding like “Gastritis”. Create different types of graphical charts based on the statistical report generated from database.
Visit Compare
CaptureITPro software stores patient data in multiple visits based on date wise. Easy to retrieve the images, videos and reports quickly, the visit compare feature loads patient data from two different visits in side-by-side interface. User can review those images quickly and the videos can be playback simultaneously. It helps to the patient for understanding the treatment curve.

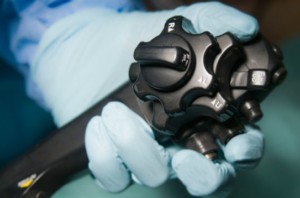

Scope button trigger or Foot pedal support
CaptureITPro software package included with USB link box device, this helps the user to take images from their scope button or camera head button trigger option. Also it has USB foot pedal device support which helps to do hands-free capture during procedure. It controls to take images, video record start/Pause/Resume and stop operations.
Additional Features
- Patient database with intelligent dynamic search options.
- Automatic data import options from multiple sources.
- In-built emailing option to send patient reports.
- Record Patient In/Out timer values to monitor the workflow effectiveness.
- Export patient data into CD/DVD or USB Flash memory.
- Stream live procedure view in a secure network for live streaming purpose.
- Easy data archive and retrieve options.
CaptureITPro V2.0 Editions
CaptureITPro Software is available in following editions to satisfy your medical imaging and documentation needs.
- Classic Edition
Contains all necessary features like image/video capturing, report generation and printing, CD/DVD/USB drive copy, Import, Export and Archive/Retrieve. - Lite Edition
All Classic Edition Features plus EMR/HL7 Interface, Multi-language support and RTF Report Editing. - DICOM Edition
All Lite Edition Features plus DICOM image/report saving, DICOM send/receive to PACS and DICOM Modality Worklist Import (MWL). - HD Edition
All Lite Edition Features plus FULL HD (1080p or 720p) image/vidoe capture, H.264 compression and storage. - HD+DICOM Edition
Full edition with both HD and DICOM features.
CaptureITPro Software can run in Stand-alone mode or in Network (client-server) mode based on your requirements.
System Requirements
User Platforms supported:
CaptureITPro is compatible with the following operating systems:
Windows XP, Windows VISTA, Windows 7 ( 32bit or 64bit ), Windows 8.x (64bit), Windows 10 (64bit) and Windows 11 (64bit).
Software Requirements:
DirectX Runtime (9.0c or higher) & Dot Net Framework (installed automatically if not present).
Hardware Requirements:
- Intel Core i3 or i5 or i7 Processor with 4 GB RAM (8 GB recommended for HD)
- 500 GB or 1TB Hard disk space for HD video recording purpose.
- Monitor/ Screen Size – Minimum 15.6” with HD display.
- Audio input device like Audio headset is required for recording audio data.
- A color printer (Deskjet or Laser printer) is required to take report printouts.
- A DVD/CD read/write enabled drive is required to write image data to DVD/CD disk. Bluray preferred for HD.
- Minimum 4 USB 2.0 ports (for Dongle, CaptureCard, Printer and footswitch).
- PCIe slot for internal HD card or USB3.0 port for external HD card. (needed only for HD edition)
- Network card & proper LAN network connectivity for DICOM/ PACS support.
- Internet connection is required to use Email feature and for online technical support.
Software Package Consist of:
- CaptureITPro Software DVD with required prerequisites like DotNet and other tools.
- USB License Dongle.
- USB2.0 Dazzle capture card for SD edition or PCIe (internal) or USB3.0 or USB2.0 (external) video capture card for HD edition.
- Connecting cables – SVideo or Composite cables for SD edition, DVI / HDMI / HD-SDI cables for HD edition.
- Single footswitch or Triple footswitch to control capture/record/stop functions using foot clicks instead of using mouse clicks.
- Camera Switch integrator to control image/video capture through camera head buttons (optional).
- User Manual and Installation Guide in English.
